40.910
- Article number:
- 40910
- Weight:
- 5.2kg
- Delivery time:
- From stock
UKB-Round steel bending set Read more..
From stock
-
Quality
use of the optimum materials -
Consultation
competent and qualified advice -
Accessibility
reliable clearing and delivery -
Know-how
more than 35 years of experience
Information
40.910
|
|

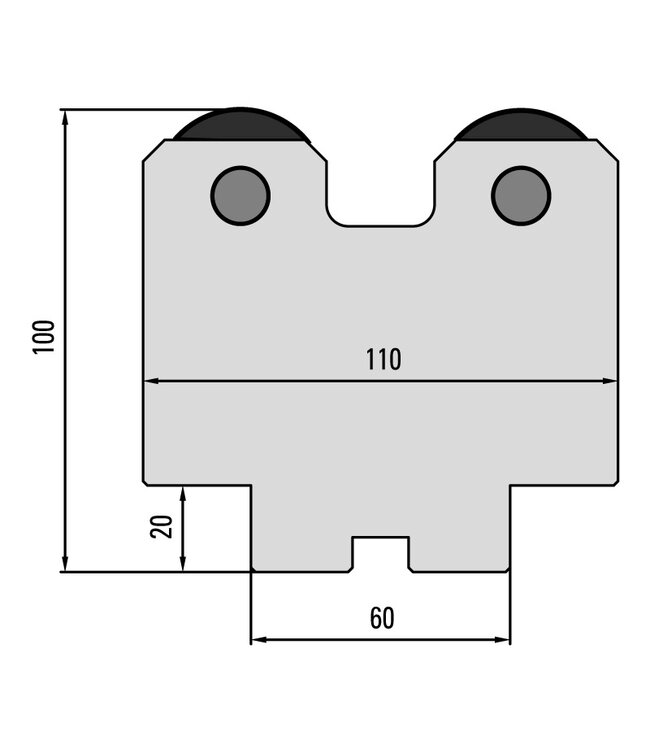

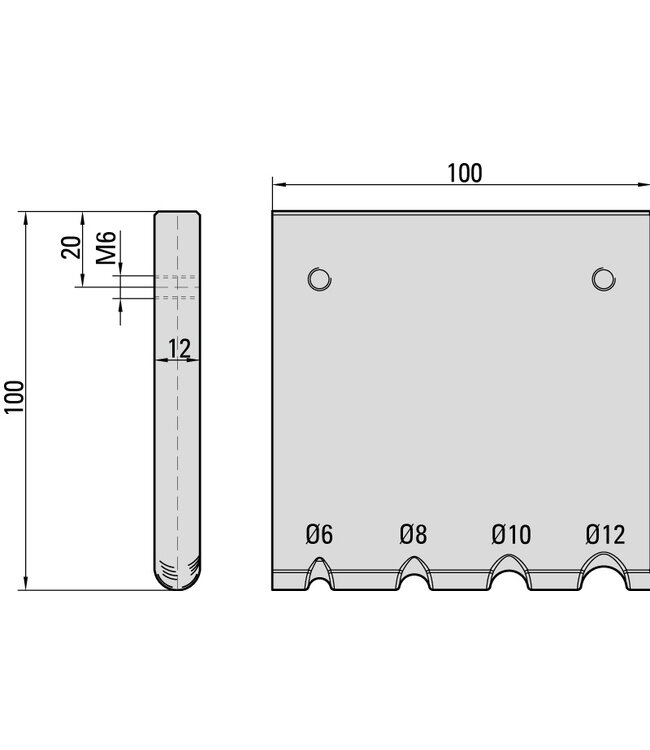

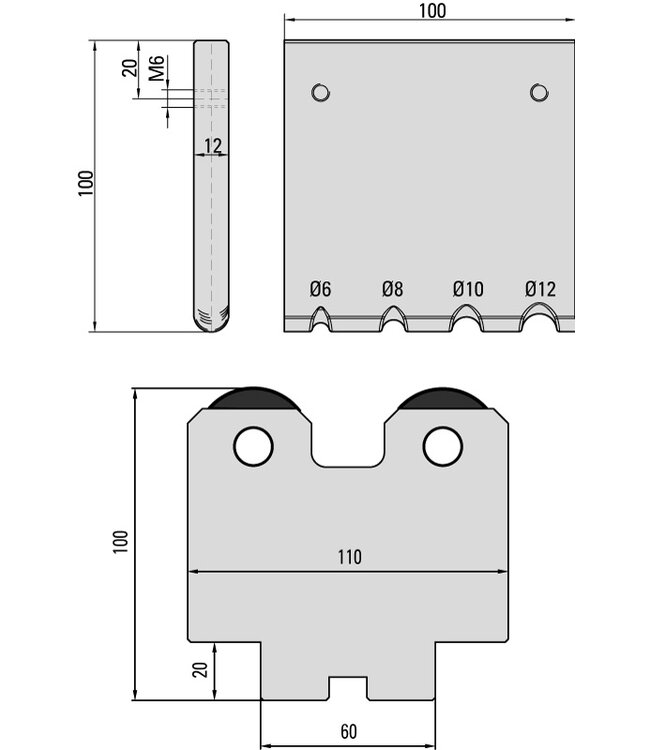

| Ø | 6 / 8 / 10 / 12 mm |
| Height | 100 mm |
| Load | 1000 kN/m max. |
| Material |
Round bar bending set |
|
|||||
|
|
|
|||||
Product advantages
Set contents:
A compatible blade holder is required. |
 |

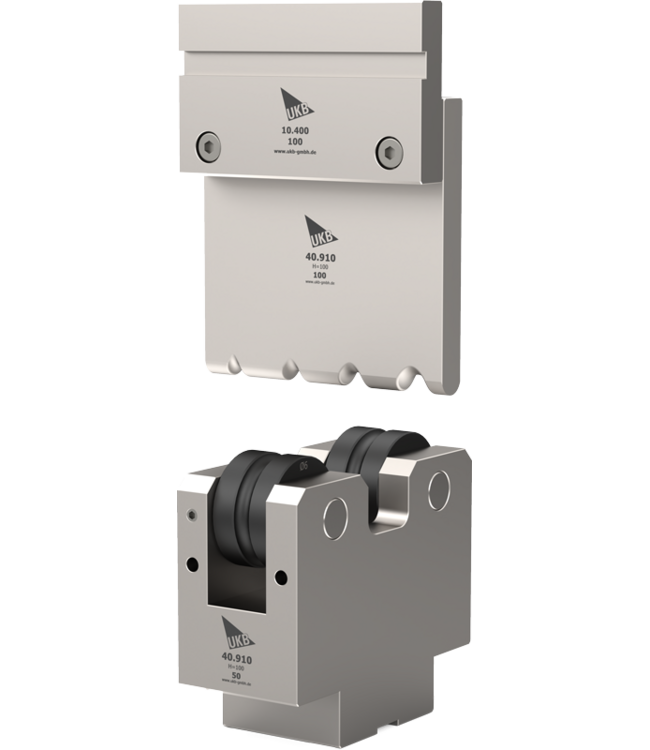

The UKB round bar bending set guides the round bar via two freely rotating, ball-bearing rollers. This virtually eliminates sliding friction and protects the material surface. Pressure marks and material deformation are significantly reduced. The 3-point guiding system, adapted to the respective round bar diameter, also ensures precise workpiece guidance, high repeatability and clean bending contours – even in demanding applications. |
 |
|||

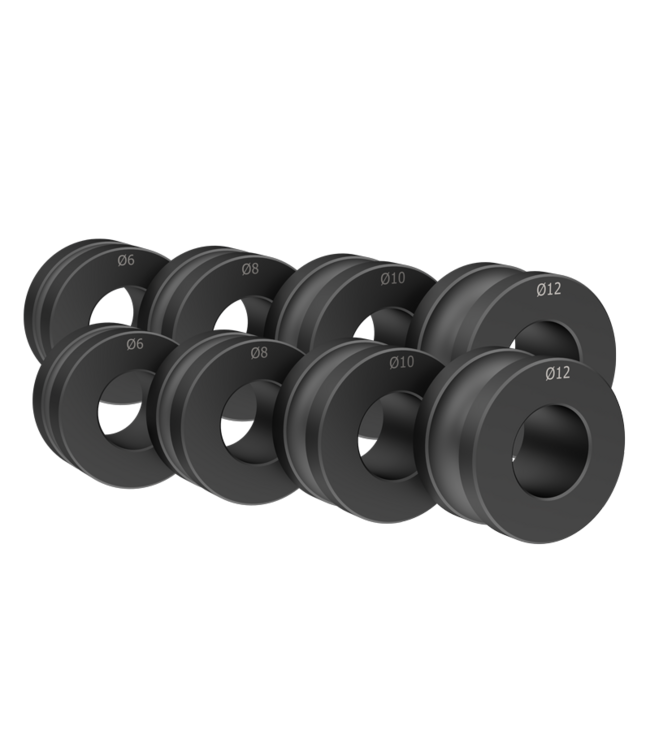

INTERCHANGEABLE ROLLERS |
ANTI-ROTATION FEATURE |
|||||

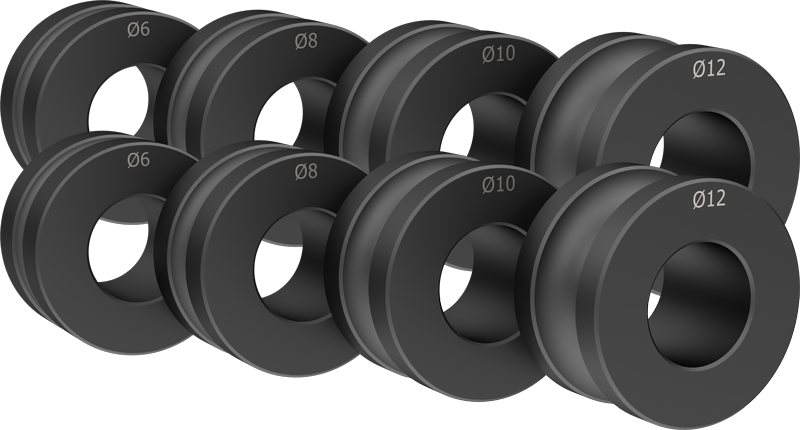

| The roller system allows for quick changes between round bar diameters of Ø 6 / 8 / 10 / 12 mm. The rollers can be replaced in just a few simple steps, reducing setup times and increasing cost efficiency. |  |
Optionally, the UKB round bar bending tool is available with a lateral stop. This provides a precise reference point for already bent workpieces and reliably prevents the round bar from twisting during successive bends. |  |
|||
Surface-friendly roller technologySpecifications
