UKB-System Wila


Quality and precision

Optimum materials

  • 42 CrMo4, tempered to 1100 – 1200 N/mm2
  • C45, tempered to 800 – 850 N/mm2

Bending radius/intake radii, hardened up to 52–55 HRC
Precision ground
Guaranteed exchangeability and parallelism

Punch/top-tool clamping Wila type I in two different models

  • Simple Clamp at segments < 12,5 kg
  • Safety pin at segments > 12,5 kg

Punch/top tool clampings Wila type I

  • Self centering
  • Usable on both sides

Tool marking with all technical information


                 Wila type I                           Wila type II

Tools Wila



UKB-INFO

Punches/top tools UKB-System Trumpf and UKB-System LVD type I
can also be used in a clamping UKB-System Wila!




Tool lengths

PUNCHES/TOP TOOLS WITH SIMPLE CLAMP < 12,5 kg





Length 515 mm





Length 300 mm

Length 200 mm

Length 100 mm



Bovengereedschappen lengte 300 mm Bovengereedschappen lengte 200 mm Bovengereedschappen lengte 100 mm


Length 550 mm sectionalized

Sectionalized punches/top tools are delivered as a complete set

10 Segments, with Simple Clamp and horn extension left and right

Bovengereedschappen lengte 550 mm gedeeld



PUNCHES/TOP TOOLS WITH SAFETY PINS > 12,5 kg



Length 515 mm






  Length 300 mm



Bovengereedschappen lengte 300 mm



DIES



Length 515 mm



Lengte 515
  Length 300 mm Length 200 mm Length 100 mm
  Lengte Lengte 200 Lengte 100


Length 550 mm sectionalized

Sectionalized dies are delivered as a complete set

9 Segments

Lengte gedeeld





Simple Clamp



ADVANTAGES

Vertical tool change for segments
up to 12,5 kg
Less set-up time
Easy handling



Safety pins



ADVANTAGES

Horizontal tool change for segments
more than 12,5 kg
Favorable purchase price (in comparison with Simple Clamp)
Hardened Safety pins on demand













Flexible Modification

PUNCHES/TOP-TOOLS



Special cuttings
Individual horn extensions
Insertion of Simple Clamp
Insertion of Safety pins
Laser marking
Other modifications
information see Modification





DIES



Special cuttings
Laser marking
Other modifications
information see Modification







Insertion of a steel insert

By mounting a steel insert dies UKB-System Amada can also be used in a clamping UKB-System Wila.







UKB-ADVANTAGES

Office hours: From Monday to Friday from 7:30am to 6:00pm
Delivery time: Press brake tools UKB-System Trumpf in 24h
Shipping: Orders placed before 4:00pm on the same working day

Delivery service:
                            Standard:         1 – 3 working days by parcel service or forwarder
                            Express:           DE 9:00, 10:30, 12:00am or 1 working day
                                                    EU 1 working day
                            Direct courier:  According agreement

Package: Ecologically sensitive and safe - with self recycled packing material
Payment options: 10 days 3% cash-discount, 30 days net





Read more
Read less

Filters

19.023

UKB-System Wila type I - Punches/top-tools H = 163 mm
€558,00
* Excl. tax Excl. Shipping costs

19.224

UKB-System Wila type I - Punches/top-tools H = 163 mm
€392,00
* Excl. tax Excl. Shipping costs

19.022

UKB-System Wila type I - Punches/top-tools H = 163 mm
€408,00
* Excl. tax Excl. Shipping costs

19.024

UKB-System Wila type I - Punches/top-tools H = 163 mm
€366,00
* Excl. tax Excl. Shipping costs

19.226

UKB-System Wila type I - Punches/top-tools H = 163 mm
€646,00
* Excl. tax Excl. Shipping costs

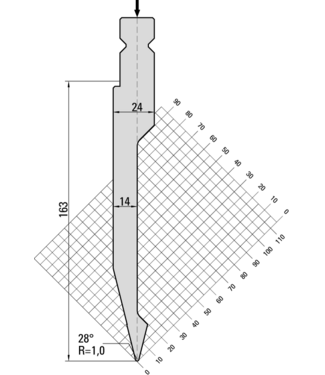

19.021

UKB-System Wila type I - Punches/top-tools H = 163 mm
€396,00
* Excl. tax Excl. Shipping costs

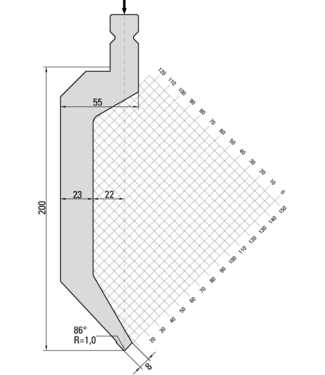

19.033

UKB-System Wila type I - Punches/top-tools H = 200 mm
€604,00
* Excl. tax Excl. Shipping costs

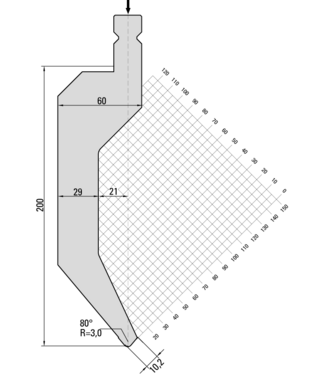

19.233

UKB-System Wila type I - Punches/top-tools H = 200 mm
€676,00
* Excl. tax Excl. Shipping costs

19.032

UKB-System Wila type I - Punches/top-tools H = 200 mm
€440,00
* Excl. tax Excl. Shipping costs

19.034

UKB-System Wila type I - Punches/top-tools H = 200 mm
€394,00
* Excl. tax Excl. Shipping costs

19.031

UKB-System Wila type I - Punches/top-tools H = 200 mm
€428,00
* Excl. tax Excl. Shipping costs

14.010

UKB-System Wila type II - Punches/top-tools H = 95 mm
€184,00
* Excl. tax Excl. Shipping costs

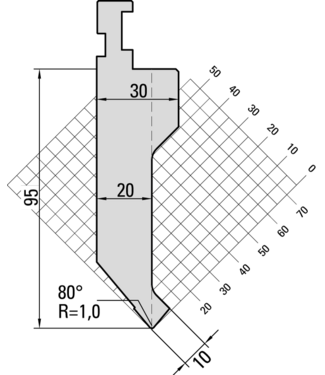

14.020

UKB-System Wila type II - Punches/top-tools H = 95 mm
€216,00
* Excl. tax Excl. Shipping costs

14.030

UKB-System Wila type II - Punches/top-tools H = 95 mm
€248,00
* Excl. tax Excl. Shipping costs

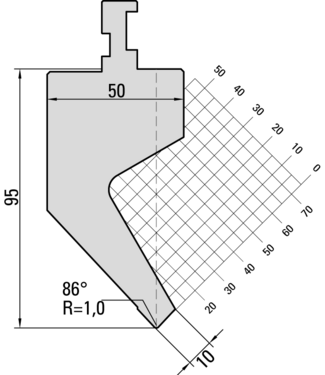

14.040

UKB-System Wila type II - Punches/top-tools H = 95 mm
€284,00
* Excl. tax Excl. Shipping costs

14.050

UKB-System Wila type II - Punches/top-tools H = 175 mm
€368,00
* Excl. tax Excl. Shipping costs

14.060

UKB-System Wila type II - Punches/top-tools H = 175 mm
€340,00
* Excl. tax Excl. Shipping costs

15.050

UKB-System Trumpf/Wila - Z-Tool holders
€1.050,00
* Excl. tax Excl. Shipping costs

15.755

UKB-System Trumpf/ Wila/ LVD- Holder for blades
€330,00
* Excl. tax Excl. Shipping costs

15.760

UKB-System Trumpf/ Wila/ LVD- Holder for blades
€630,00
* Excl. tax Excl. Shipping costs

15.010

UKB-System Trumpf/Wila/LVD - Holder for radius-tools R 7,0 -..
€298,00
* Excl. tax Excl. Shipping costs

15.014

UKB-System Trumpf/Wila/LVD - Holder for radius-tools R 7,0 -..
€898,00
* Excl. tax Excl. Shipping costs

15.018

UKB-System Trumpf/Wila/LVD - Holder for radius-tools R 7,0 -..
€750,00
* Excl. tax Excl. Shipping costs

10.325

Flattening-tool
€102,00
* Excl. tax Excl. Shipping costs
