UKB-System LVD

Quality and precision

Optimum materials

  • 42 CrMo4, tempered to 1100 – 1200 N/mm2
  • C45, tempered to 800 – 850 N/mm2
  • C45, 650 – 800 N/mm²

Bending radius/intake radii, hardened up to 52–55 HRC
Precision ground
Guaranteed exchangeability and parallelism

Punch/top-tool clamping LVD type I in two different models

  • Simple Clamp at segments < 12,5 kg
  • Safety pin at segments > 12,5 kg

Punch/top tool clampings LVD type I

  • Self centering
  • Usable on both sides

Tool marking with all technical information




           LVD type I                           LVD type II




UKB-INFO

Punches/top tools UKB-System Trumpf and UKB-System Wila type I
can also be used in a clamping UKB-System LVD!




Tool lengths


PUNCHES/TOP TOOLS WITH SIMPLE CLAMP < 12,5 kg



510 mm



250 mm

250 mm



550 mm sectionalized

Sectionalized punches/top tools are delivered as a complete set

10 Segments, with Simple Clamp and horn extension left and right

Lengte 550 gedeeld





PUNCHES/TOP TOOLS WITH SAFETY PINS > 12,5 kg



510 mm







510 mm

250 mm

550 mm sectionalized

Sectionalized dies are delivered as a complete set

9 Segments





Simple Clamp



ADVANTAGES

Vertical tool change for segments
up to 12,5 kg
Less set-up time
Easy handling



Safety pins



ADVANTAGES

Horizontal tool change for segments
more than 12,5 kg
Favorable purchase price (in comparison with Simple Clamp)
Hardened Safety pins on demand


















Insertion of a steel insert

By mounting a steel insert dies UKB-System Amada can also be used in clampings UKB-System LVD.

Information see Modification









UKB-ADVANTAGES

Office hours: From Monday to Friday from 7:30am to 6:00pm
Delivery time: Press brake tools UKB-System Trumpf in 24h
Shipping: Orders placed before 4:00pm on the same working day

Delivery service:
                            Standard:         1 – 3 working days by parcel service or forwarder
                            Express:           DE 9:00, 10:30, 12:00am or 1 working day
                                                    EU 1 working day
                            Direct courier:  According agreement

Package: Ecologically sensitive and safe - with self recycled packing material
Payment options: 14 days 2% cash-discount, 30 days net

Read more
Read less

Filters

15.018

UKB-System Trumpf/Wila/LVD - Holder for radius-tools type I
€836,00
* Excl. tax Excl. Shipping costs

10.325

Flattening-tool
€116,00
* Excl. tax Excl. Shipping costs

16.060

UKB-System LVD - Z-Tool holders
€1.392,00
* Excl. tax Excl. Shipping costs

50.430

Punch/top-tool adaptors - UKB-System Amada --> UKB-System ..
€288,00
* Excl. tax Excl. Shipping costs

50.470

Punch/top-tool adaptors - UKB-System LVD Type II --> UKB-Sy..
€0,00
* Excl. tax Excl. Shipping costs

50.490

Punch/top-tool adaptors - UKB-System Weinbrenner --> UKB-Sy..
€0,00
* Excl. tax Excl. Shipping costs

50.502

Punch/top-tool adaptors - UKB-System Trumpf/Wila/LVD type I..
€724,00
* Excl. tax Excl. Shipping costs

50.940

Punch/top-tool adaptors - UKB-System Trumpf/Wila/LVD --> UK..
€168,00
* Excl. tax Excl. Shipping costs

50.965

Punch/top-tool adaptors - UKB-System Amada --> UKB-System T..
€256,00
* Excl. tax Excl. Shipping costs

50.970

Punch/top-tool adaptors - UKB-System Trumpf/Wila/LVD type I..
€118,00
* Excl. tax Excl. Shipping costs

50.990

Punch/top-tool adaptors - UKB-System LVD Type II --> UKB-S..
€116,00
* Excl. tax Excl. Shipping costs

850.000

Individual punch/top tool adaptors --> UKB-System Trumpf/Wil..
€0,00
* Excl. tax Excl. Shipping costs

60.930

Die adaptors -UKB-System LVD --> UKB-System Amada
€336,00
* Excl. tax Excl. Shipping costs

60.935

Die adaptors UKB-System LVD --> UKB-System Trumpf/Wila/Byst..
€422,00
* Excl. tax Excl. Shipping costs

50.450

Punch/top-tool adaptors - UKB-System EHT --> UKB-System Tr..
€0,00
* Excl. tax Excl. Shipping costs

16.808

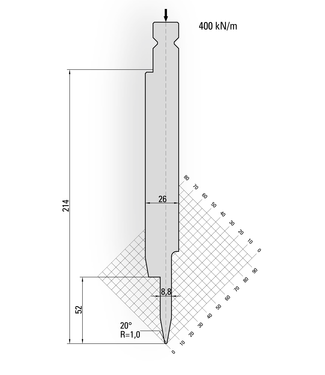

UKB-System LVD - 20° Flattening punches/top tools
