Home / 16.810
€646,00
Add to cart

16.810

16.810
16.810
16.810
€646,00
* Excl. tax Excl. Shipping costs
Article number:
16810-510-Pin
Weight:
15.4kg
Delivery time:
From stock

UKB-System LVD - 20° Flattening punches/top tools Read more..

Video
Download DXF
From stock

  • Quality

    use of the optimum materials

  • Consultation

    competent and qualified advice

  • Accessibility

    reliable clearing and delivery

  • Know-how

    more than 30 years of experience

Information

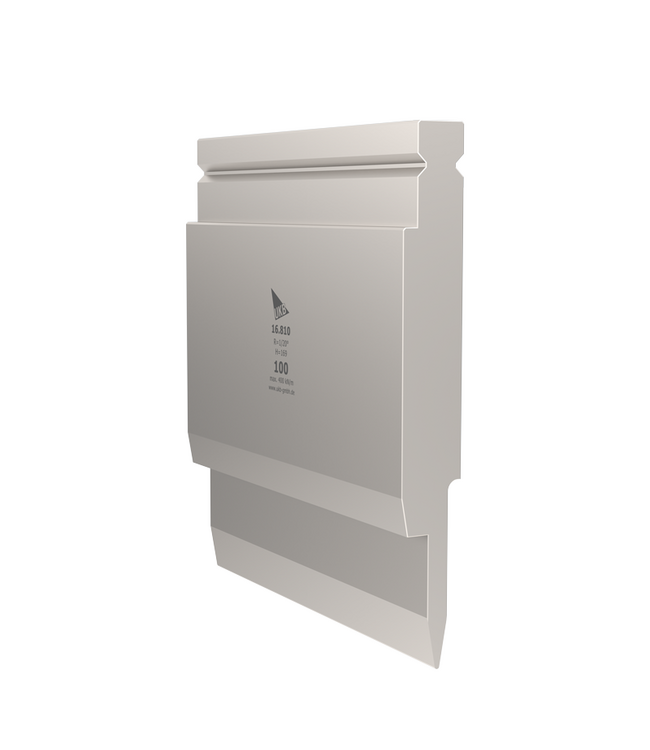

 16.810


Tooling system UKB-System Trumpf/Wila/LVD
Angle 20°
Radius R 1,0 mm
Height 169 mm
Load 400 kN/m max.
Material 42CrMo4

For flattening/hemming dies 26.810 and 26.910



UKB-INFO

Max. load for hemming = 1000kN/m

Punches/top tools UKB-System Trumpf and UKB-System Wila type I
can also be used in a clamping UKB-System LVD!




Tool lengths


PUNCHES/TOP TOOLS WITH SIMPLE CLAMP < 12,5 kg





250 mm

550 mm sectionalized


Lengte 250

Lengte 510


10 Segments, with Simple Clamp and horn extension left and right

Sectionalized punches/top tools are delivered as a complete set





PUNCHES/TOP TOOLS WITH SAFETY PINS > 12,5 kg




510 mm







Specifications

Product safety
Manufacturer & Responsible Person: UKB - Uwe Krumm GmbH . Struthwiese 1 . 57299 Burbach, E-Mail: [email protected]
