25.503
- Article number:
- 25503-500
- Weight:
- 7.8kg
- Delivery time:
- From stock

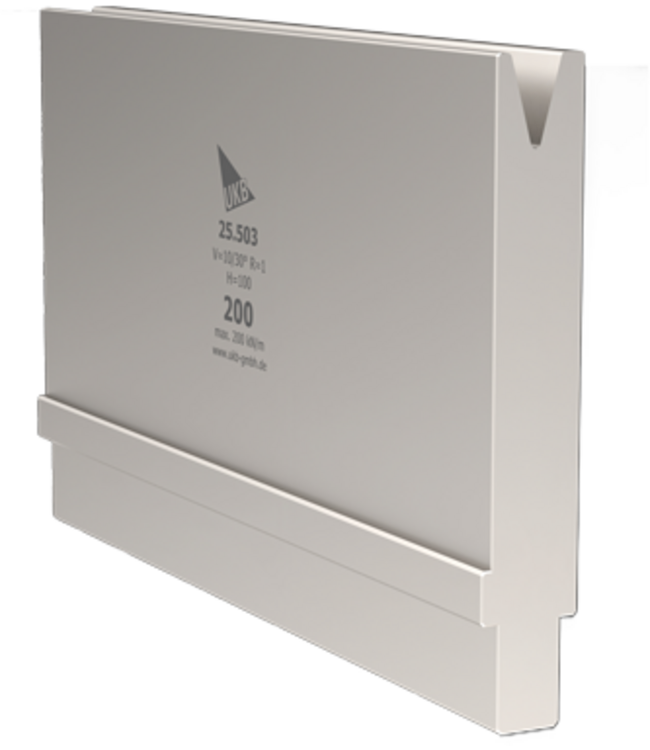

UKB-System Trumpf - 30° dies, H = 100 mm Read more..
From stock
-
Quality
use of the optimum materials -
Consultation
competent and qualified advice -
Accessibility
reliable clearing and delivery -
Know-how
more than 30 years of experience
Information
25.503
|
|
| Tooling system | UKB-System Trumpf/Wila/Bystronic |
| Angle | 30° |
| Die opening | V = 10 mm |
| Intake radius | R = 1 mm |
| Height | 100 mm |
| Load | 200 kN/m max. |
| Material | 42 CrMo4 |
Dies can be used with an additional drill hole 70.800
with screwable flattening die 60.120!
Tool lengths
Sectionalized dies are delivered as
|
|
|
2050 mm Tool Set |
|
3050 mm Tool Set |
|
4050 mm Tool Set |
Put together your tool lenghts individually!
