Home / 25.400
€310,00
Add to cart

25.400

25.400
25.400
€310,00
* Excl. tax Excl. Shipping costs
Article number:
25400-500
Weight:
7kg
Delivery time:
From stock

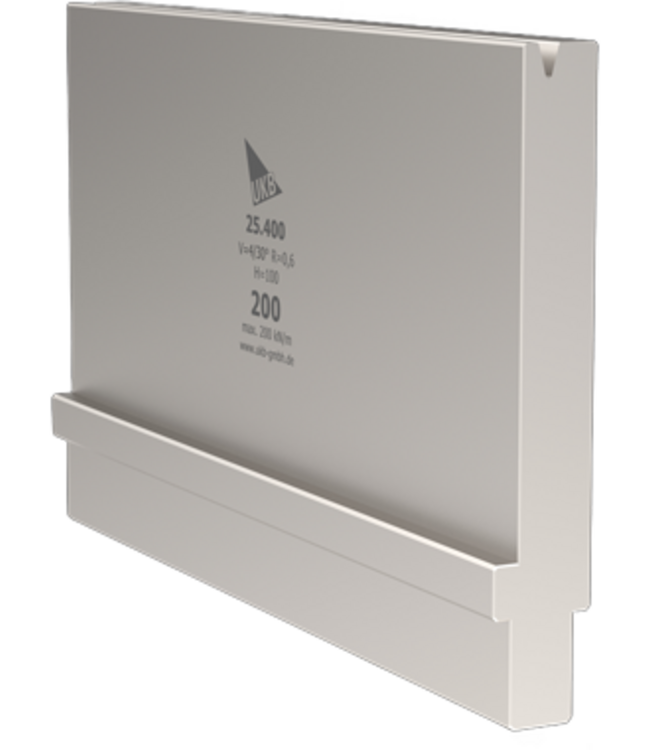

UKB-System Trumpf - 30° dies, H = 100 mm Read more..

Video
Download DXF
From stock

  • Quality

    use of the optimum materials

  • Consultation

    competent and qualified advice

  • Accessibility

    reliable clearing and delivery

  • Know-how

    more than 30 years of experience

Information

 25.400


Tooling system UKB-System Trumpf/Wila/Bystronic
Angle 30°
Die opening V = 4 mm
Intake radius R = 0,6 mm
Height 100 mm
Load 200 kN/m max.
Material 42 CrMo4

Dies can be used with an additional drill hole 70.800
with screwable flattening die 60.120!





Tool lengths

DIES

550 mm sectionalized



500 mm

   300 mm   200 mm



 100 mm

Matrizen lengte 550 mm



Matrizen lengte 500 mm

   Matrizen lengte 300 mm

Matrizen lengte 200 mm



 Matrizen lengte 100 mm
9 Segments

2050 mm Tool Set

14 Segments

3050 mm Tool Set

16 Segments

4050 mm Tool Set

18 Segments





Specifications

Product safety
Manufacturer & Responsible Person: UKB - Uwe Krumm GmbH . Struthwiese 1 . 57299 Burbach, E-Mail: [email protected]
