€1.094,00
Add to cart

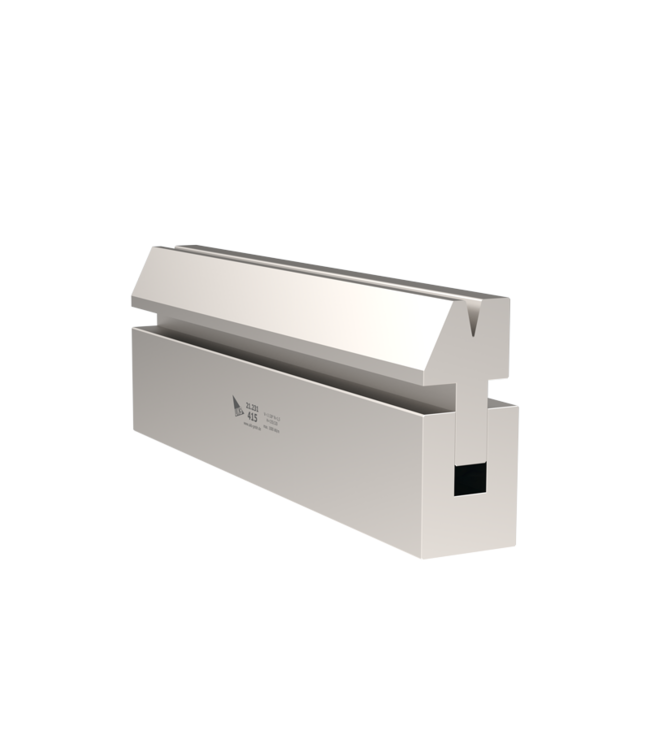

21.231

21.231
€1.094,00
* Excl. tax Excl. Shipping costs
Article number:
21231-835
Weight:
41.5kg
Delivery time:
On request

UKB-System Amada - Pneumatic flattening dies Read more..

On request
  • Quality

    use of the optimum materials
  • Consultation

    competent and qualified advice
  • Accessibility

    reliable clearing and delivery
  • Know-how

    more than 25 years of experience

Information

21.231


Tooling system UKB-System Amada
Angle 26°
Die opening V = 10 mm
Intake radius R = 1,5 mm
Height 120/135 mm
Load 1000 kN/m max.
Material C45, 650 - 800 N/mm2
42 CrMo4

Max. 2,0 mm material thickness
Rm = 400 N/mm²



Advantages

Faster bending through 15 mm less stroke

More precise bendings

Less attrition

Connectable to existing free control-output I/O






Tool lengths

DIES



Length 835 mm

Punch/ top-tools length 835 mm



Length 415 mm

Punch/ top-tools length 415 mm
