17.120
- Article number:
- 17120-2050-SET
- Delivery time:
- On request
UKB-System EHT - 78° Punches/top-tools Read more..
On request
-
Quality
use of the optimum materials -
Consultation
competent and qualified advice -
Accessibility
reliable clearing and delivery -
Know-how
more than 30 years of experience
Information

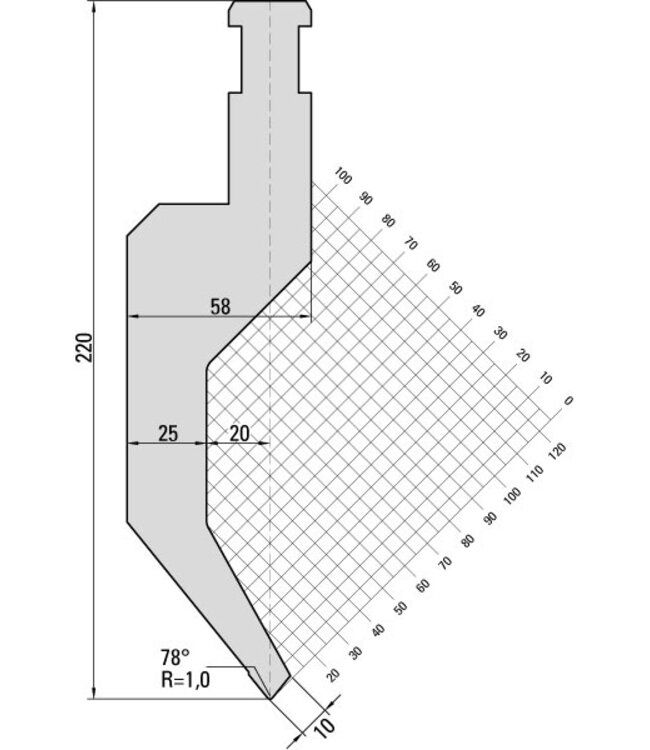

17.120
|
|
| Tooling system | UKB-System EHT |
| Angle | 78° |
| Radius | R 1,0 mm |
| Height | 220 mm |
| Load | 550 kN/m max. |
We produce individual after your specifications.
Tool lengths |
|
|
PUNCHES/TOP TOOLS |
|
|
| 2050 mm | ||
 |
17 Segments, with horn extension left and right |
|
| 2550 mm | ||
 |
19 Segments, with horn extension left and right |
|
| 3050 mm | ||
 |
21 Segments, with horn extension left and right |
|
| 3550 mm | ||
 |
23 Segments, with horn extension left and right |
|
| 4050 mm | ||
 |
25 Segments, with horn extension left and right |
|
