17.100
- Article number:
- 17100-2050-SET
- Delivery time:
- On request
UKB-System EHT - 86° Punches/top-tools Read more..
On request
-
Quality
use of the optimum materials -
Consultation
competent and qualified advice -
Accessibility
reliable clearing and delivery -
Know-how
more than 30 years of experience
Information

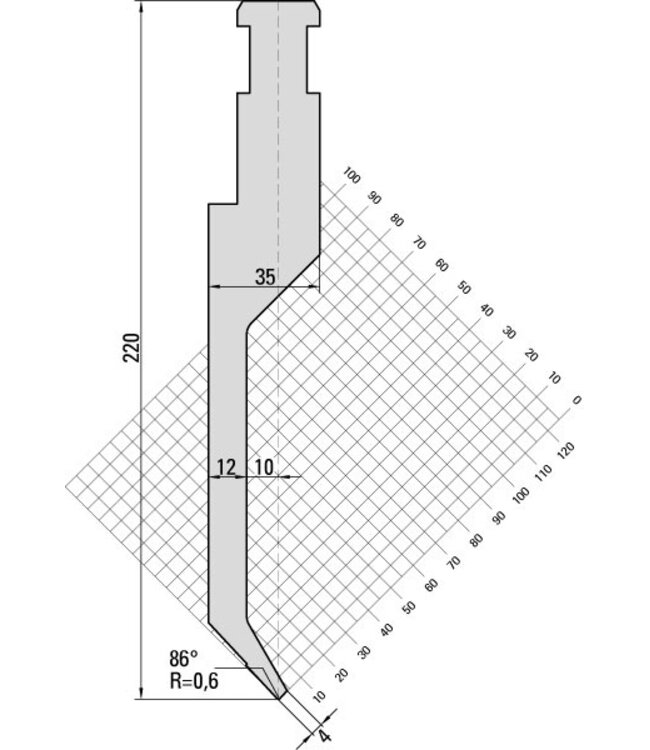

17.100
|
|
| Tooling system | UKB-System EHT |
| Angle | 86° |
| Radius | R 0,6 mm |
| Height | 220 mm |
| Load | 200 kN/m max. |
We produce individual after your specifications.
Tool lengths
PUNCHES/TOP TOOLS |
|
| 2050 mm | |
 |
17 Segments, with horn extension left and right |
| 2550 mm | |
 |
19 Segments, with horn extension left and right |
| 3050 mm | |
 |
21 Segments, with horn extension left and right |
| 3550 mm | |
 |
23 Segments, with horn extension left and right |
| 4050 mm | |
 |
25 Segments, with horn extension left and right |
