14.050
|
|
| Tooling system | UKB-System Wila type II |
| Angle | 28° |
| Radius | R 1,0 mm |
| Height | 175 mm |
| Load | 1000 kN/m max. |
| Material | C45, tempered to 800-850N/mm² |

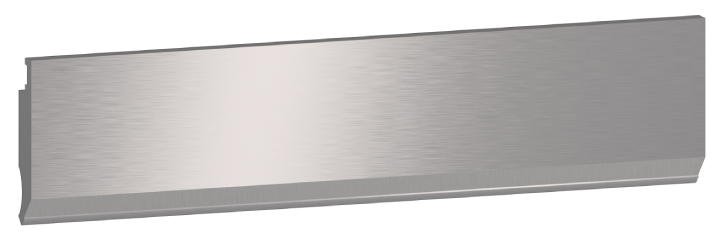

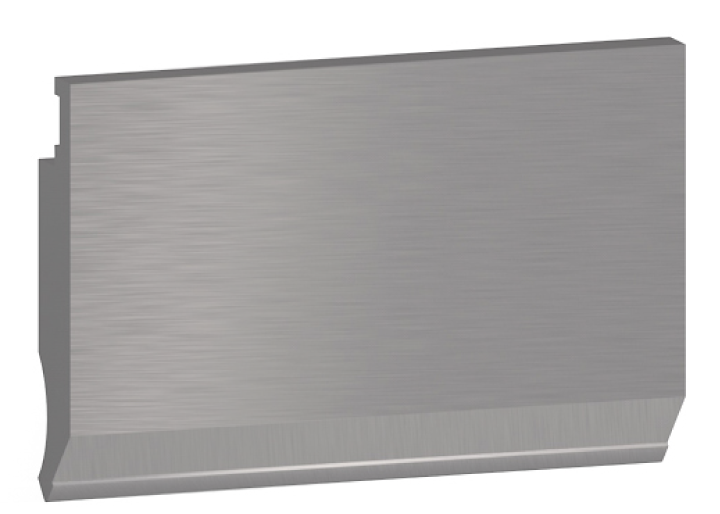

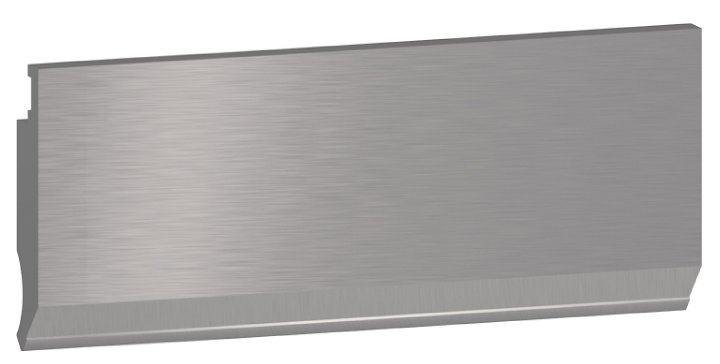

Tool lengths
Sectionalized punches/top tools are delivered as a complete set
MODIFICATION OF CLAMPING UKB-SYSTEM AMADA
 |
By milling an additional groove and shortening of the head punches/top tools UKB-System Amada can also be used in a clamping UKB-System Wila type II. |
