€196,00
Add to cart

11.158

11.158
11.158
€196,00
* Excl. tax Excl. Shipping costs
In stock
Article number:
11158-835
Delivery time:
From stock

30° Punches/top-tools - UKB-System A Type Amada Read more..

From stock
  • Quality

    use of the optimum materials
  • Consultation

    competent and qualified advice
  • Accessibility

    reliable clearing and delivery
  • Know-how

    more than 25 years of experience

Information

UKB-INFO

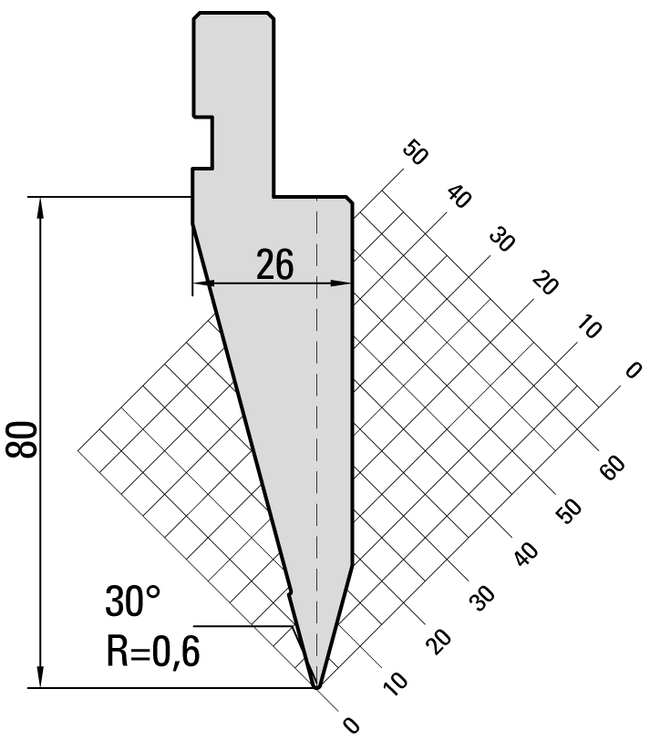

Tooling system UKB-System A - Typ Amada
Angle 30°
Radius R 0,6 mm
Height 80 mm
Load 1000 kN/m max.
Material C45




Tool lengths



Punches/top-tools

Length 835 mm

Length 415 mm

Length 835 mm sectionalized

  • Sectionalized punches/top-tools are delivered as a complete set
  • 9 Segments
    (100 Horn extension left, 10, 15, 20, 40, 50, 200, 300, 100 Horn extension right)
